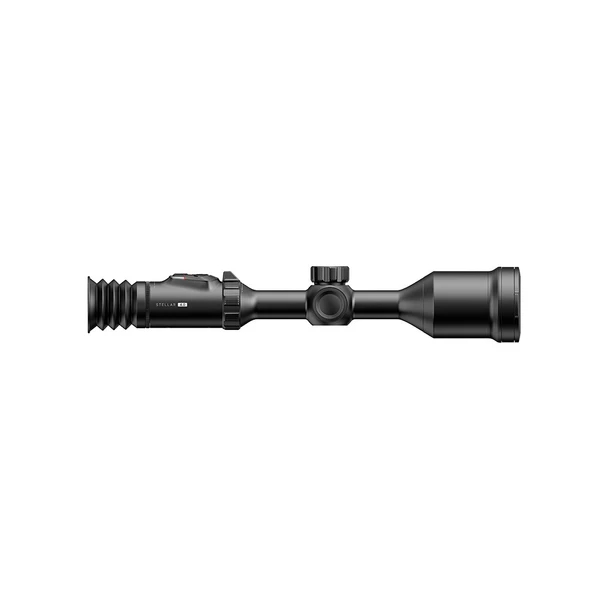

HIKMICRO Stellar 4.0 SQ75L thermal scope with laser rangefinder

The HIKMICRO Stellar SX75L 4.0 is a flagship thermal riflescope with a 1280x1024 12µm sensor, <12mK NETD and a 75mm F1.2 lens for detection out to 3600m. An LRF-inside 1200m rangefinder and ballistic calculator ensure precision, while the 2560x2560 AMOLED display, Image Pro 4.0 and Zoom Pro deliver exceptional clarity from 3x to 30x. Side focus, 6000J recoil resistance, IP67 protection and 64GB recording make it a class-leading choice.

• Product TypeThermal Imaging Riflescope
• Image SensorVOx Uncooled Focal Plane Array
• Sensor Resolution1280x1024
• Pixel Pitch12µm
• Frame Rate50Hz
• Response Waveband8µm to 14µm
• NETDLess than 12mK
• Lens75mm, F1.2
• Focus ModeSide Focus Ring
• Minimum Focusing Distance10m
• Detection Range3600m
• Magnification3.0x–30.0x
• Field of View (H x V)12.1° x 9.7° / 21.2m x 17m @ 100m
• Display2560x2560, 1.03-inch AMOLED
• FFC ModeAuto, Manual, External Correction
• Colour PalettesBlack Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil8mm
• Eye Relief55mm
• Dioptre Range-5D to +5D
• Image AdjustmentsBrightness, Contrast, Tone (Cold/Warm)
• Image TechnologiesHSIS, Image Pro 4.0, Zoom Pro, Sync Pro
• Video RecordingOn-board video recording
• Audio RecordingYes
• Recoil-Activated RecordingYes
• StorageBuilt-in eMMC, 64GB
• WiFiYes, compatible with the HIKMICRO Sight app
• FunctionsSnapshot, PIP, Hotspot, Distance Measurement, Ballistic Calculation, Standby Mode, Local Album
• Zeroing Profiles5, with Freeze Zeroing
• Laser RangefinderLRF-inside design, 905nm, Class 1
• LRF Measuring Range10m to 1200m
• LRF Accuracy±1m
• BatteryTwo internal rechargeable lithium batteries plus one replaceable, rechargeable 18650 battery
• Battery LifeUp to 7 hours (25°C, LRF on)
• Power Supply5V DC / 2A, USB Type-C, supports QC3.0 (charges internal batteries only)
• Max. Recoil6000J
• MountingStandard 30mm tube
• Centre Height41mm
• Dimensions445.7 x 93.5 x 78.7mm
• Weight1075g with external battery
• Operating Temperature-30°C to +55°C
• Protection RatingIP67

• 1280x1024 12µm VOx detector - HD thermal resolution for exceptional detail and identification.

• NETD less than 12mK - extraordinary sensitivity to the faintest heat signatures.

• 75mm F1.2 lens - detection range of up to 3600m.

• LRF-inside design with 1200m range - ±1m accurate ranging hidden within the lens.

• Ballistic calculation - precise holdover at any range.

• 3.0x–30.0x magnification - a wide view for scanning and huge reach for identification.

• 2560x2560 1.03-inch AMOLED display - an immersive, high-contrast picture.

• Image Pro 4.0 and AI Zoom Pro - crisp detail with minimal pixelation at high zoom.

• HSIS shutterless imaging and Sync Pro - smooth, uninterrupted viewing.

• Flexible FFC modes - auto, manual and external correction for total control.

• Side focus and rear magnification ring - intuitive, traditional riflescope handling.

• 8mm exit pupil and 55mm eye relief - fast, comfortable target acquisition.

• 6000J shock resistance - built for powerful calibres.

• Up to 7 hours runtime - internal batteries plus a replaceable 18650.

• 64GB storage with audio - including recoil-activated recording.

• 5 zeroing profiles with Freeze Zeroing - swap rifles and loads with ease.

• PIP, Hotspot and Hot Track - locate and follow quarry quickly.

• IP67 protection - dustproof and waterproof.

• 30mm tube mounting - fits standard 30mm scope rings.

• Built-in WiFi with HIKMICRO Sight app - manage and share footage from your phone.
