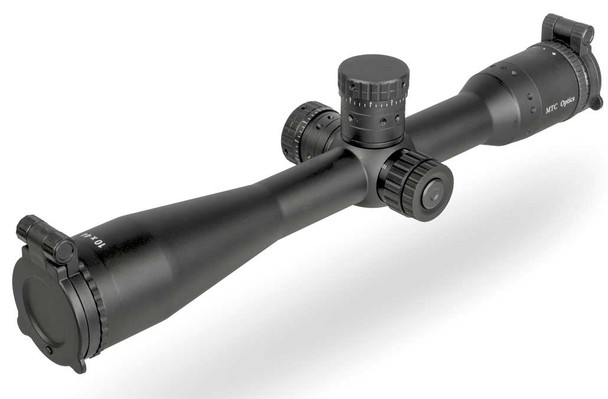

MTC Viper Pro

Viper Pro features

• X6 times scopes to extend magnification range without sacrificing optical performance
• Super bright multi coated optics for a new standard of light transfer
• Patented magnetic, rotating flip-up lens covers
• Patented magnifying lens in rear cover for head-up display of turret markings
• Patented range ‘window’ on elevation turret
• ‘Smart’ range turret; geared to make up to 3 rotations of the turret relate to a single rotation of a customisable range display window
• Side parallax – 10 yds to infinity
• Illuminated reticle with separate on/off and brightness button

SCB2 Reticle

The Small Calibre Ballistic (SCB) reticle offers an incredible amount of aim points with a floating cross for clear and accurate target acquisition. This is ideal for use on small targets. The 1 mil dot square around the cross gives a rapid acquisition for small fast moving targets such as rats. When shooting at small targets or when bullet drop becomes critical the versatility of this reticule becomes clear.

Technical Specifications

Viper 10×44

• Magnification 10x
• Objective Lens – 44mm
• FOV @ 1000m – 140m / 23m
• Diopter Adj – +/-2
• Eye Relief – 100mm
• Parallax Setting – 10m -infinity
• Adj per click – 1/4 MOA
• Max Windage Adj – 42 MOA
• Max Elevation Adj – 42 MOA
• Clicks per one turret revolution – 40
• MOA per one turret revolution – 10
• MOA per one Distance Disc revolution – 30
• Number of steps in one Distance Disc revolution -120
• Max drop covered in one Distance Disc revolution @ 100m – 87.6cm
• Max drop covered in one Distance Disc revolution @ 100yds – 31.41 inches
• Impact point correction in one click @ 100m – 0.73cm
• Impact point correction in one click @ 100yds – 0.26 inches
• Tube – 30mm
• Illuminated reticle with separate on/off and brightness control
• Length – 365mm
• Weight – 750g
• Length of range tape if placed on top of MOA ring – 94.2mm
• Length of range tape if placed carriage directly – 89.9mm

Viper 3-18×50

• Magnification 5-30x
• Objective Lens – 50mm
• FOV @ 1000m – 140m / 23m
• Diopter Adj – +/-2
• Eye Relief – 86mm
• Parallax Setting – 10m -infinity
• Adj per click – 1/4 MOA
• Max Windage Adj – 42 MOA
• Max Elevation Adj – 42 MOA
• Clicks per one turret revolution – 40
• MOA per one turret revolution – 10
• MOA per one Distance Disc revolution – 30
• Number of steps in one Distance Disc revolution -120
• Max drop covered in one Distance Disc revolution @ 100m – 87.6cm
• Max drop covered in one Distance Disc revolution @ 100yds – 31.41 inches
• Impact point correction in one click @ 100m – 0.73cm
• Impact point correction in one click @ 100yds – 0.26 inches
• Tube – 30mm
• Illuminated reticle with separate on/off and brightness control
• Length – 417mm
• Weight – 869g (Tactical 732g)
• Length of range tape if placed on top of MOA ring – 94.2mm
• Length of range tape if placed carriage directly – 89.9mm
