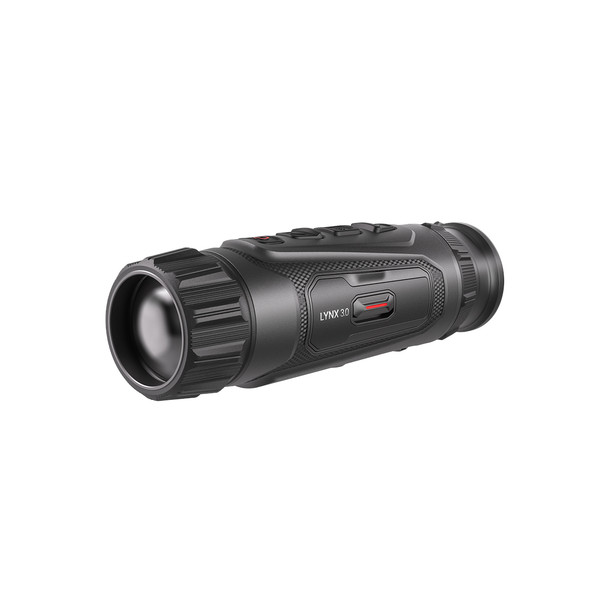

HIKMICRO Lynx 3.0 LQ35 35mm640px Thermal Monocular
- SKU:
- 0000009391-000013929
- Shipping:
- Free Shipping
Description
The Lynx 3.0 , redefining entry-level thermal imagers.
The HIKMICRO Lynx 3.0 LQ35 represents the pinnacle of thermal monocular performance for serious professionals. Featuring a 640x512 thermal detector and a 35mm F1.0 lens, it delivers 1.9x base magnification out to 15.2x, a 12.5°×7.5° field of view, and a detection range of up to 1800 metres, making it the ultimate tool for long-range observation.
Incorporating AI-driven Image Pro 3.0 and Zoom Pro algorithms, the LQ35 offers superior image fidelity and consistency across challenging conditions. The HSIS shutterless technology enables smooth, silent operation for continuous, distraction-free imaging.
At 354.5 grams, the LQ35 remains portable yet robust. A replaceable 18650 battery provides up to 4.5 hours of operation at -20°C, ensuring dependable field endurance. Ideal for hunting, security, or professional surveillance, it delivers unmatched clarity and control.
Features
- Up to 640×512 Thermal resolution
- High-sensitivity thermal module with NETD < 15 mK (@25°C, F# = 1.0).
- 35 mm, F1.0 lens with thermal detection range up to 1800 m
- HIKMICRO Shutterless Imaging System (HSIS)
- AI-powered Image Pro 3.0 and Zoom Pro algorithms
- 0.49-inch OLED display with 1920 × 1080 resolution
- Replaceable and rechargeable 18650 battery provides up to 4.5 hours of continuous operation at -20°C
- Lightweight design at 354.5 g, with a pocket-sized build
Specs
- Image SensorVOx Uncooled Focal Plane Arrays
- Max. Resolution640 × 512
- Frame Rate50 Hz
- Pixel Interval12 μm
- Response Waveband8 μm – 14 μm
- NETD< 15 mK (@25°C), F#=1.0
- Lens (Focal Length)35 mm, f1.0
- Focus ModeFocus Ring
- Detection Range1800 m
- Min. Focusing Distance3.5 m
- Magnification1.9× – 15.2× (8×)
- Field of View (H × V)12.5° × 7.5° / 21.9 m × 13.2 m @100 m
- Display1920 × 1080, 0.49 in, AMOLED
- PalettesBlack Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil6 mm
- Eye Relief20 mm
- Diopter (Range)-5D to +3D
- Brightness AdjustmentYes
- Tone AdjustmentCold, Warm
- Contrast AdjustmentYes
- Zoom ProYes
- HSIS (HIKMICRO Shutterless Image System)Yes
- Image Pro 3.0Yes
- Record VideoYes
- Capture SnapshotYes
- Audio RecordingYes
- Standby ModeYes
- Built-in Memory64 GB EMMC
- PIPYes
- Hotspot2.4 GHz / 5 GHz Wi-Fi
- Hot TrackYes
- Distance MeasurementYes
- Local AlbumYes
- Battery TypeReplaceable & Rechargeable Li-ion 18650
- Battery Operating Time5-hour continuous (@25°C), 4.5-hour continuous (@-20°C)
- Type-C Power Supply5V DC, 2A
- External Power SupplySupported, Direct Charging Supported
- Protection LevelIP67
- Dimension169.6 × 53.6 × 49.5 mm
- Weight354.5 g (with battery)
- Working Temperature-30°C to 45°C (-22°F to 113°F)
- Humidity≤ 90%
